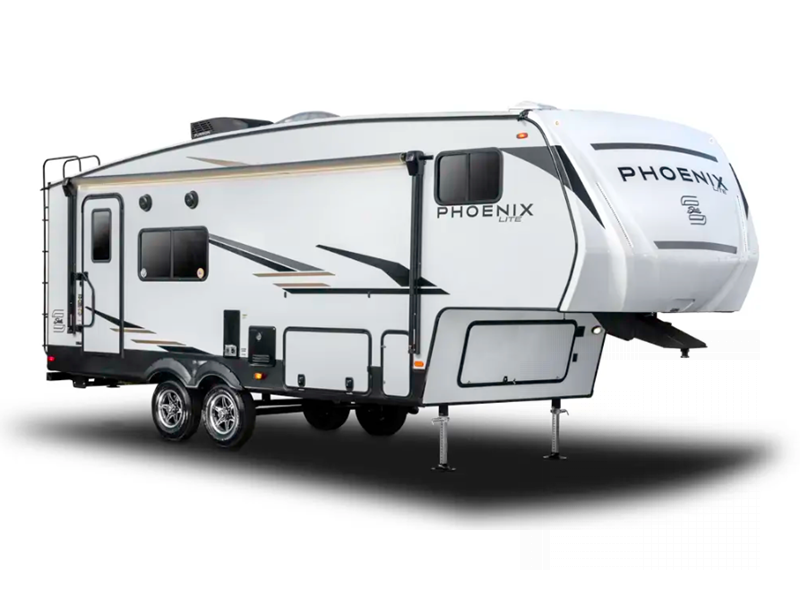

Shasta RV proudly offers you the Phoenix Lite half-ton towable fifth wheels! These units are easy to tow and include many high-end features with luxurious interiors to give you the best outdoor experience when camping. With the Phoenix Lite you will enjoy a 90 degree radius turning point pin box for ease of getting into the best camp spots, electric stabilizer jacks, and a high-capacity water pump! The gel-coated fiberglass exterior and laminated, aluminum-framed sidewalls will provide years of stability and easy maintenance.

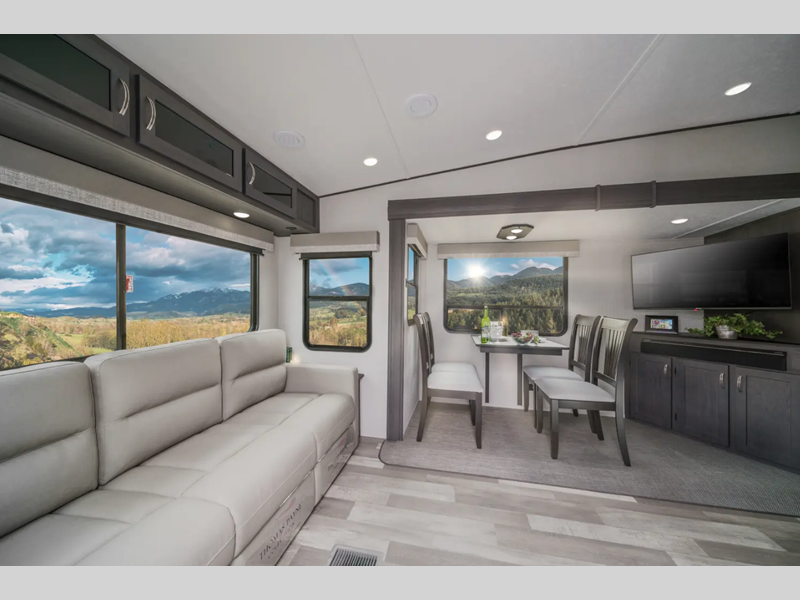

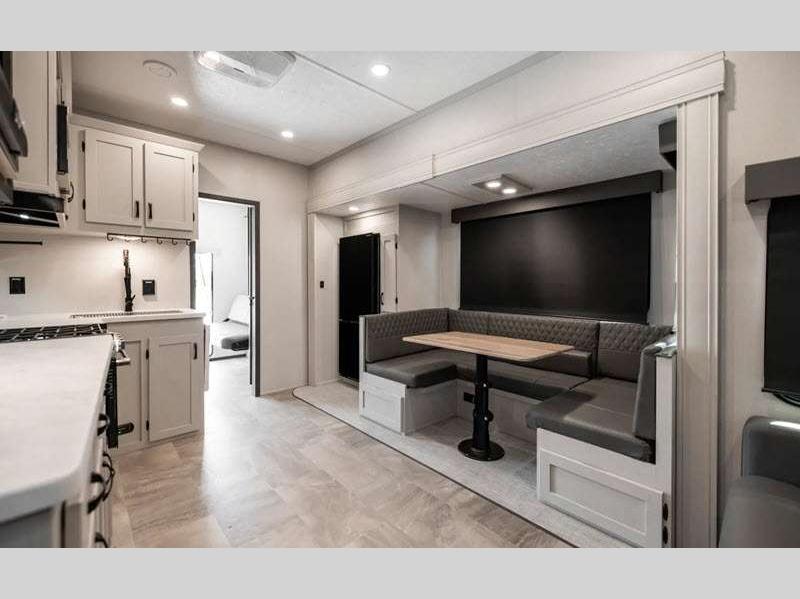

On the inside, you can easily relax in any of the comfortable seating, and you will surely appreciate the fabulous interior amenities, like the hand-rubbed Maple cabinet doors, the ball-bearing full-extension drawer glides, stainless steel appliances, USB charging ports, and large panoramic vented windows. LED lighting with motion sensors in key areas makes any task easy both day and night.



Come choose the model that fits your family's camping style the best and start planning your next adventure with an all-inclusive Phoenix Lite fifth wheel by Shasta RV!

  • Phoenix Lite 285RLS

    Phoenix Lite 285RLS Floorplan Image

    Shasta Phoenix Lite fifth wheel 285RLS highlights: Outside Entertainment Triple ... more about Phoenix Lite 285RLS

    Specifications

    Sleeps 5
    Slides 3
    Length 33 ft 7 in
    Ext Width 8 ft
    Ext Height 11 ft 10 in
    Int Height 6 ft 9 in
    Hitch Weight 1693 lbs
    Gross Weight 11500 lbs
    Dry Weight 9455 lbs
    Cargo Weight 2045 lbs
    Fresh Water Capacity 40 gals
    Grey Water Capacity 66 gals
    Black Water Capacity 33 gals
    Tire Size 15
    Available Beds Queen
    Refrigerator Type Double Door
    Refrigerator Size 8 cu ft
    Shower Size 34" x 34"
    Number of Awnings 1
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type Gas/Electric
    AC BTU 15000 btu
    TV Info LR 55" LED TV
    Awning Info 11' Electric with LED Lights
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Radius
    Electrical Service 50 amp

    Similar Floorplans

  • Specifications

    Sleeps 9
    Slides 3
    Length 35 ft 4 in
    Ext Width 8 ft
    Ext Height 11 ft 10 in
    Int Height 6 ft 9 in
    Hitch Weight 1729 lbs
    Gross Weight 11000 lbs
    Dry Weight 9228 lbs
    Cargo Weight 1772 lbs
    Fresh Water Capacity 40 gals
    Grey Water Capacity 66 gals
    Black Water Capacity 33 gals
    Tire Size 15
    Number Of Bunks 4
    Available Beds Queen
    Refrigerator Type Double Door
    Refrigerator Size 8 cu ft
    Number of Awnings 1
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type Gas/Electric
    AC BTU 15000 btu
    TV Info LR 50" LED TV
    Awning Info 15' Electric with LED Lights
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Radius
    Electrical Service 50 amp

    Similar Floorplans

  • Phoenix Lite 25MK

    Phoenix Lite 25MK Floorplan Image

    Shasta Phoenix Lite fifth wheel 25MK highlights: Master Suite Large Pantry Two ... more about Phoenix Lite 25MK

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 2
    Length 29 ft 3 in
    Ext Width 0 ft
    Ext Height 11 ft 10 in
    Int Height 6 ft 9 in
    Hitch Weight 1407 lbs
    Gross Weight 9800 lbs
    Dry Weight 7701 lbs
    Cargo Weight 2099 lbs
    Fresh Water Capacity 40 gals
    Grey Water Capacity 33 gals
    Black Water Capacity 33 gals
    Tire Size 15
    Available Beds Queen
    Refrigerator Type Double Door
    Refrigerator Size 8 cu ft
    Shower Size 34" x 34"
    Number of Awnings 1
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type Gas/Electric
    AC BTU 15000 btu
    Awning Info 13' Electric with LED Lights
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Radius
    Electrical Service 50 amp

    Similar Floorplans

  • Phoenix Lite 295BH

    Phoenix Lite 295BH Floorplan Image

    Take a Virtual Tour

    Shasta Phoenix Lite fifth wheel 295BH highlights: Double-Size Bunks Double ... more about Phoenix Lite 295BH

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 9
    Slides 2
    Length 34 ft 7 in
    Ext Width 8 ft
    Ext Height 11 ft 10 in
    Int Height 6 ft 9 in
    Hitch Weight 1777 lbs
    Gross Weight 11000 lbs
    Dry Weight 9092 lbs
    Cargo Weight 1908 lbs
    Fresh Water Capacity 40 gals
    Grey Water Capacity 66 gals
    Black Water Capacity 33 gals
    Tire Size 15
    Number Of Bunks 2
    Available Beds Queen
    Refrigerator Type Double Door
    Refrigerator Size 8 cu ft
    Shower Size 34" x 34"
    Number of Awnings 1
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type Gas/Electric
    AC BTU 15000 btu
    TV Info LR 50" LED TV
    Awning Info 20' Electric with LED Lights
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Radius
    Electrical Service 50 amp

    Similar Floorplans

  • Phoenix Lite 30BH

    Phoenix Lite 30BH Floorplan Image

    Shasta Phoenix Lite fifth wheel 30BH highlights: Private Bunkhouse Three Slides ... more about Phoenix Lite 30BH

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 7
    Slides 3
    Length 0 ft
    Number Of Bunks 2
    Available Beds Queen
    Refrigerator Type Double Door
    Refrigerator Size 8 cu ft
    Shower Size 34" x 34"
    Number of Awnings 1
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type Gas/Electric
    AC BTU 15000 btu
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Radius
    Electrical Service 50 amp

    Similar Floorplans

  • Phoenix Lite 30RLS

    Phoenix Lite 30RLS Floorplan Image

    Take a Virtual Tour

    Shasta Phoenix Lite fifth wheel 30RLS highlights: Master Suite Kitchen Island ... more about Phoenix Lite 30RLS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 3
    Length 33 ft 7 in
    Ext Width 8 ft
    Ext Height 11 ft 10 in
    Int Height 6 ft 9 in
    Hitch Weight 1729 lbs
    Gross Weight 11000 lbs
    Dry Weight 9166 lbs
    Cargo Weight 1834 lbs
    Fresh Water Capacity 40 gals
    Grey Water Capacity 66 gals
    Black Water Capacity 33 gals
    Tire Size 15
    Available Beds Queen
    Refrigerator Type Double Door
    Refrigerator Size 8 cu ft
    Shower Size 34" x 34"
    Number of Awnings 1
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type Gas/Electric
    AC BTU 15000 btu
    TV Info LR 50" LED TV
    Awning Info 15' Electric with LED Lights
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Radius
    Electrical Service 50 amp

    Similar Floorplans

Phoenix Lite Features:

Standard Features (2019)



Exterior

  • Turning Point Pin Box - 90 Degree Turning
  • Extended Pin Box
  • Marine Grade LED Hitch Light
  • 80% Tint Radius Safety Glass Windows
  • 30 Lb. LP Bottles (2)
  • Factory Installed Roof Ladder
  • Insulated Pass Thru Storage
  • High-Capacity Water Pump
  • Electric Stabilizer Jacks

Interior

  • Hand Rubbed Maple Cabinet Doors
  • Solid Hardwood Drawer Fronts
  • Louvered Tread Steps to Bedroom
  • Solid Core Cabinet Stiles
  • Pre-drilled and Screwed Cabinetry
  • Ball Bearing Full Extension Drawer Glides
  • USB Charging Ports

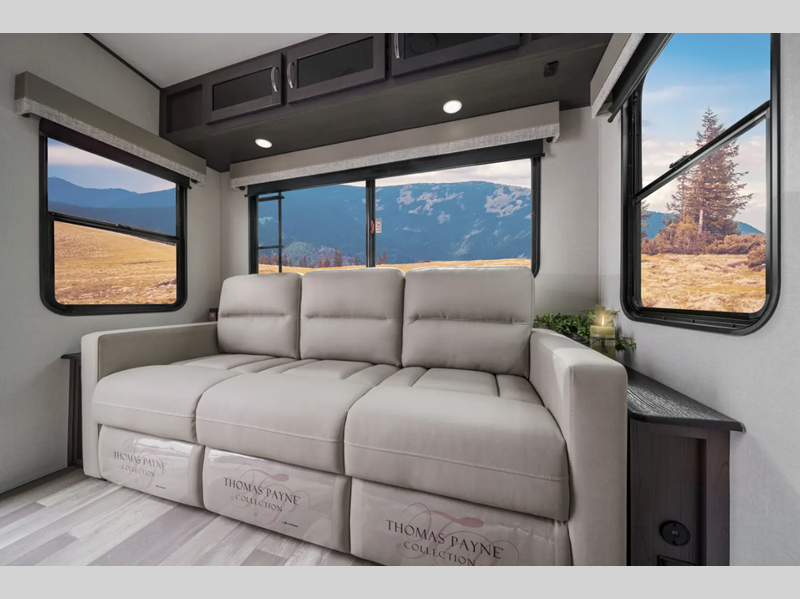

  • Tri-Fold Hide-A-Bed Sofa (Model Specific)
  • Theater Seating (Model Specific)
  • Large Panoramic Vented Windows
  • Premium Beau Flooring
  • 2nd A/C Prepped w/Dual Zone Thermostat
  • LED Lighting Throughout w/Motion Sensors (Key Areas)

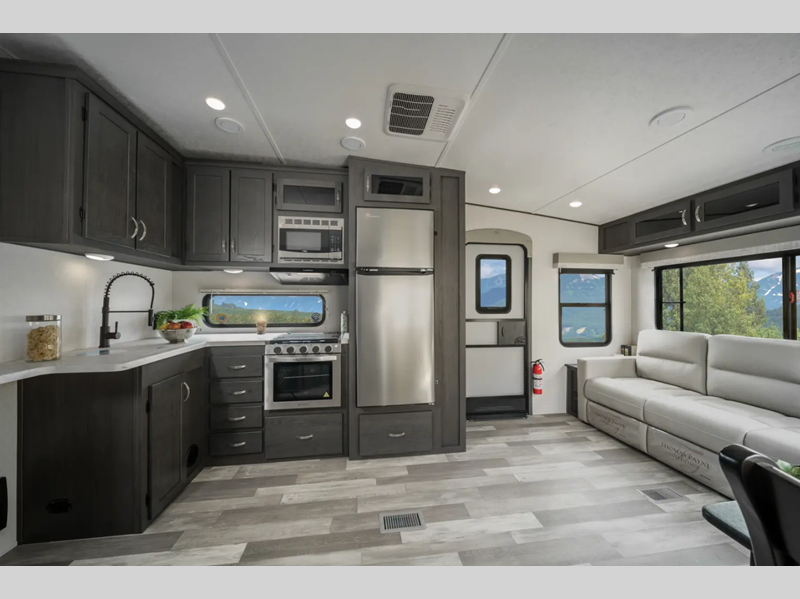

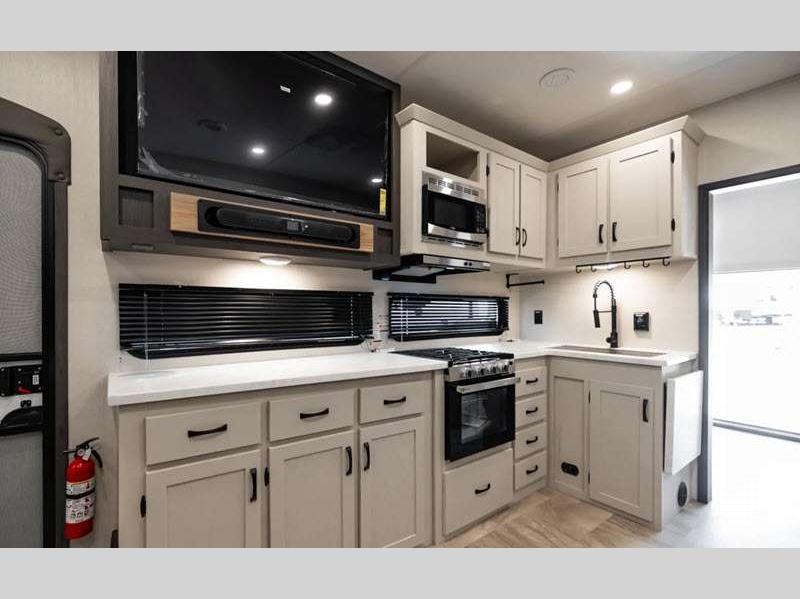

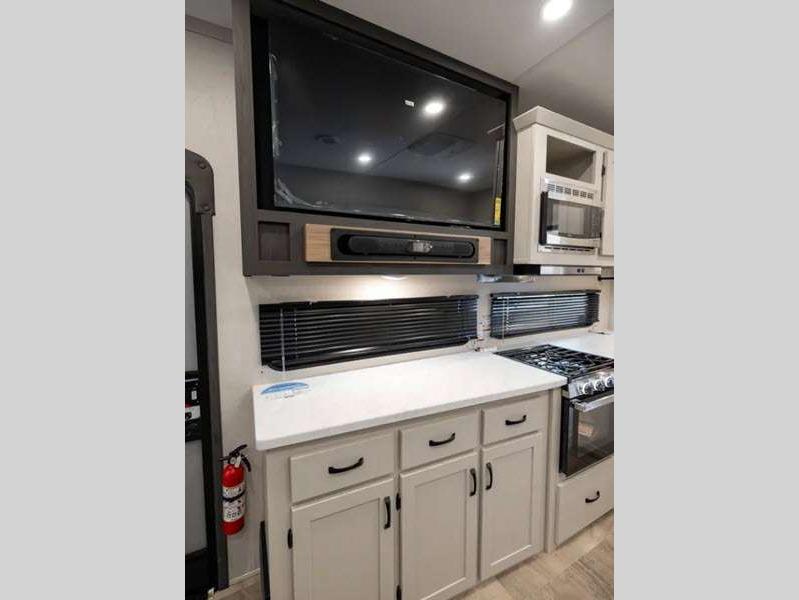

Kitchen

  • Stainless Steel Sink

Bathroom

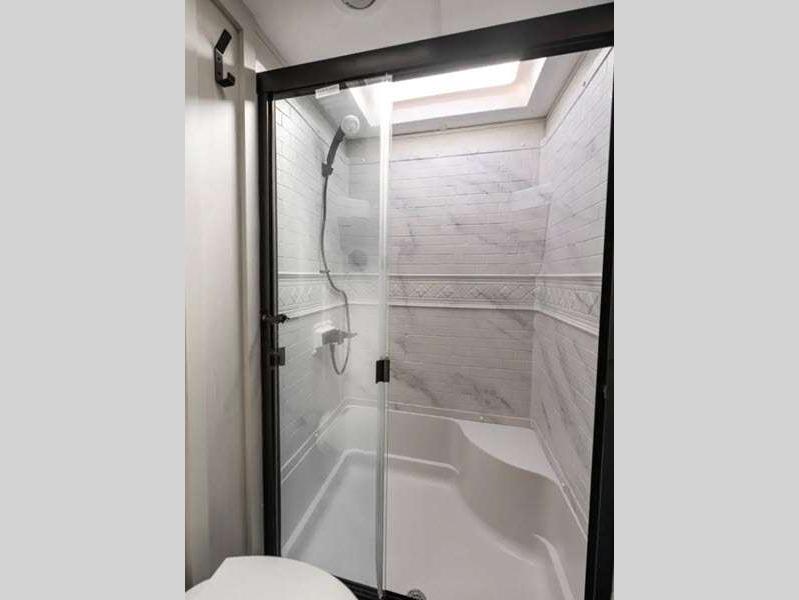

  • Spacious Shower with Glass Door
  • Wide View Skylight Over Shower
  • Heat Duct and A/C Vents in Bathroom
  • Power Vent Fan

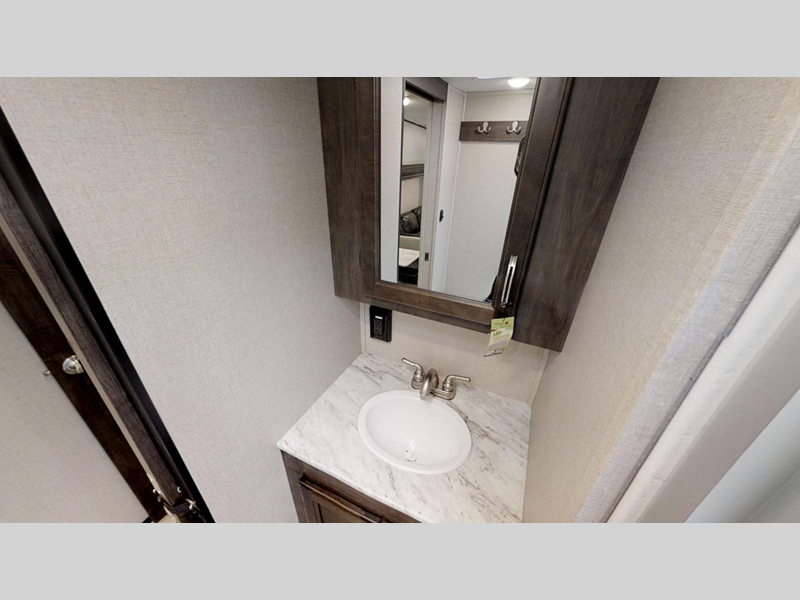

  • Extra large Lav Top with Extra Large Sink
  • Large Medicine Cabinet with Mirror
  • Linen Closet

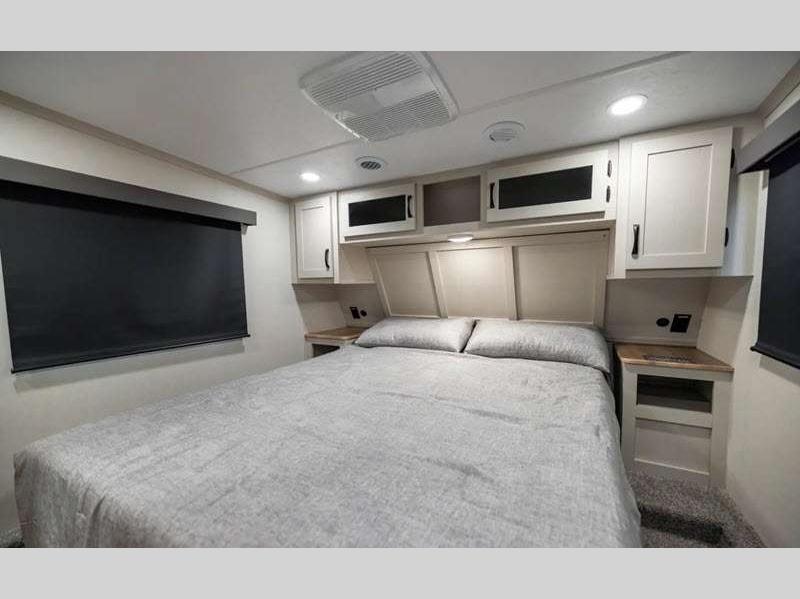

Bedroom

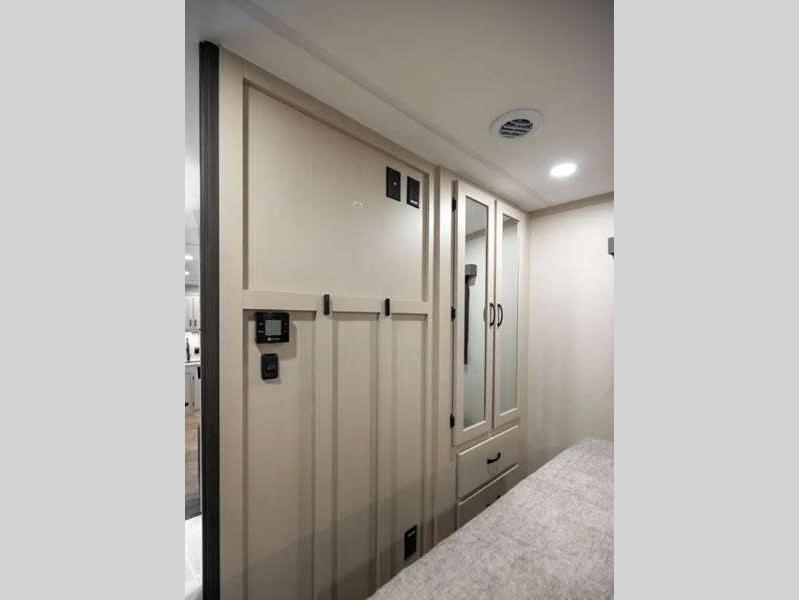

  • Huge Wardrobe
  • USB Charging Ports
  • Oversized Under bed Storage
  • Residential Bedspread
  • Bedroom Heat Registers
  • Closable A/C Vents

Construction

  • Gel Coated Fiberglass Exterior
  • Residential 5" Truss Rafters (16" O.C.)
  • Walk On Roof Decking
  • One-Piece TPO Roof Membrane with 12-year Warranty
  • Easy Access Low Point Drain Valves
  • Laminated & Aluminum Framed Sidewalls with AZDEL (R-11)
  • Laminated & Aluminum Framed Floor (R-30+)
  • Residential Wood Framed Roof (R-38+)

Phoenix Lite Package - Mandatory

  • Turning Point Pin Box - 90 Degree Turning
  • Laminated & Aluminum Framed Floor & Sidewalls with AZDEL
  • Ducted 2nd Air Conditioner Prepped
  • 50 AMP Service w/Detachable Chord
  • 12 Volt Battery Disconnect Switch
  • Solar Panel Prep
  • Exterior Back-Up Camera Prep
  • Electric Awning w/LED Light Strip
  • 6 Gallon Gas/Elec. Hot Water Heater
  • Residential 60" x 80" Pillow Top Mattress
  • Aluminum Entry Steps
  • Electric Front Jacks
  • KING Jack Over-The-Air-HDYV Antenna
  • Satellite & Cable T.V. Hook-Up
  • Exterior T.V. Hook-Up
  • Am/Fm/Cd/Dvd Player w/Bluetooth
  • Exterior Speakers w/LED Light
  • 15" Radial Tires w/Aluminum Rims
  • Spare Tire
  • Dexter E-Z Lube Axles
  • Dexter E-Z Flex Suspension

Residential Living Package (Mandatory)

  • Solid Surface Countertops
  • 15,000 BTU Ducted Air Conditioning

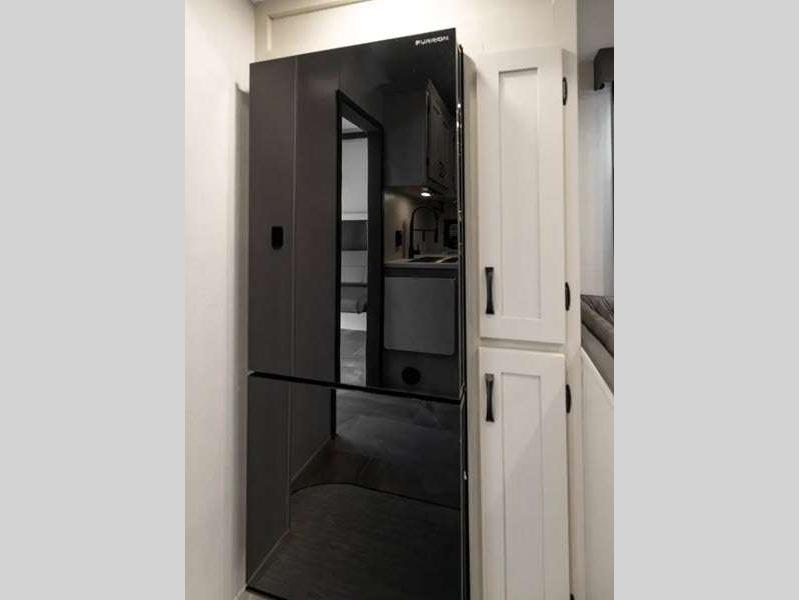

  • 8 Cubic Foot Double Door Refrigerator
  • Stainless Steel Range/Oven
  • Hard Valances and Curtains
  • 50" LED T.V. (29BH, 295BH, & 30RLS)
  • 55" LED T.V. (285RLS)

Weather Shield+ Four Seasons Protection Package - (Mandatory)

  • ZERO Degree Cold Tested & 110 Degree Hot Tested in Extreme Temperature Chamber
  • Heated & Enclosed Dump Valves
  • Heated & Enclosed Underbelly w/Circulating Heat
  • Radiant Shield Upgraded Insulation
  • Sidewalls - R11
  • Floors - R30+
  • Roof - R38+

Options

  • 2ND 13.5 BTU A/C in Bedroom - Ducted
  • 4-Pt. Elec. Auto-Leveling (Available on: 285RL, 29BH, 295BH, 30RLS)
  • Sectional Sofa (29BH and 295BH)

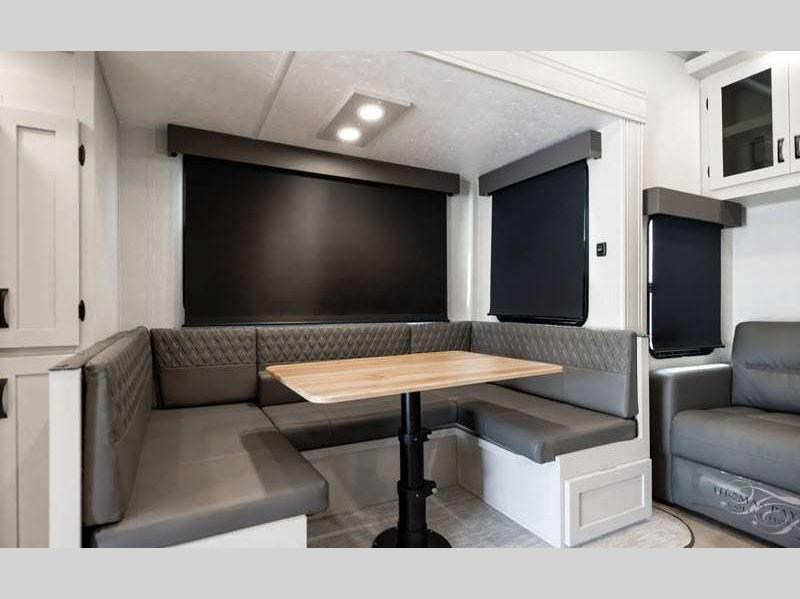

  • Booth Dinette IPO Freestanding
  • Comfort Air Fan in Kitchen
  • Electric Fireplace
  • 10 Cubic Foot 12V. Refrigerator IPO 8 Cubic Foot Refrigerator

Please see us for a complete list of features and available options!

All standard features and specifications are subject to change.
