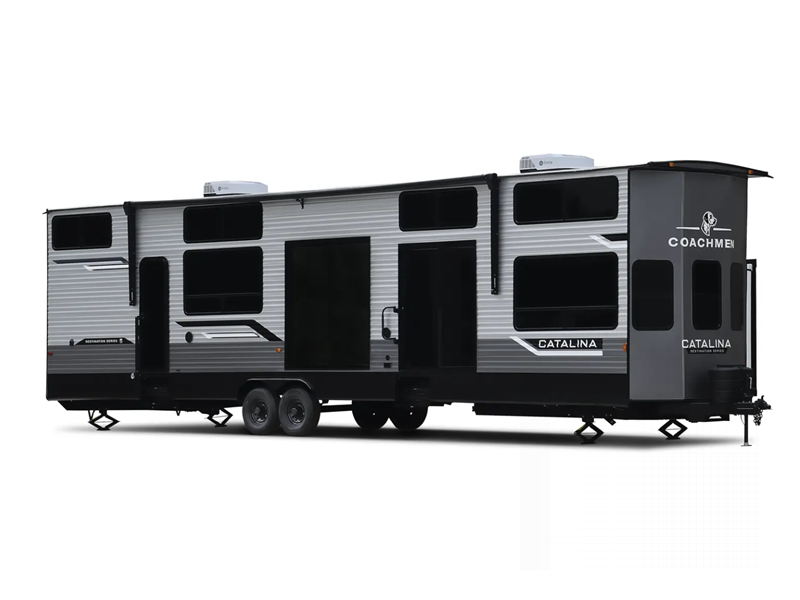

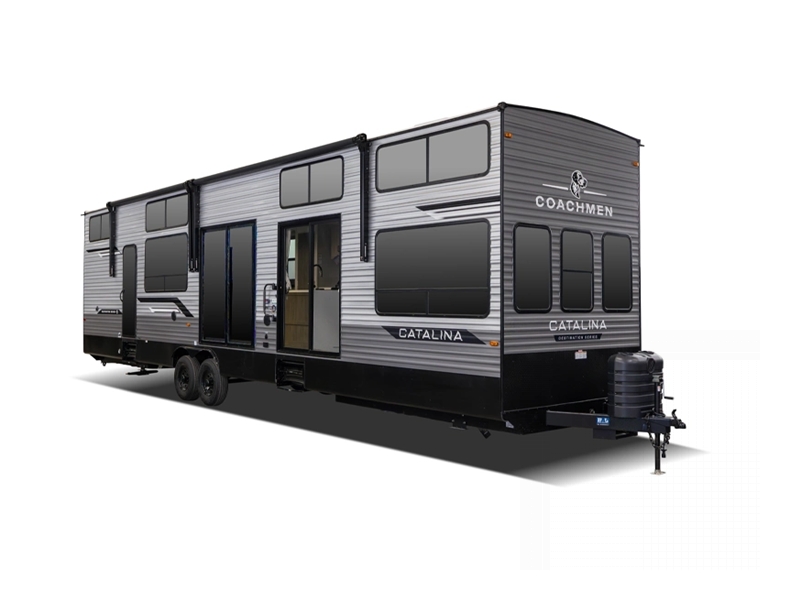

Coachmen RV Catalina Destination Series Destination Trailer

Previous
Next
1 of 36
The Catalina Destination Series by Coachmen is the perfect extended stay destination trailer for all of your vacation getaways because it has been engineered to enhance and maximize the space, storage, and comfort!

These destination trailers are built for extended stay travelers with a cambered structural steel l-beam frame, 3/4" fully decked walk-on roof, residential in-floor ducted heat, large bay front windows, 7' ceiling height, and a marine toilet, which means that you have everything you need for an exciting yet comfortable outdoor getaway each and every time.

Choose a name and quality that you can trust with one of these Coachmen Catalina Destination series destination trailers!
  • Catalina Destination Series 33FKDS

    Catalina Destination Series 33FKDS Floorplan Image

    Coachmen Catalina Destination Series destination trailer 33FKDS highlights: ... more about Catalina Destination Series 33FKDS

    Specifications

    Sleeps 5
    Slides 2
    Length 35 ft
    Ext Width 8 ft
    Ext Height 11 ft 6 in
    Int Height 7 ft
    Interior Color Sandcastle, Biscotti, Mocha
    Hitch Weight 1102 lbs
    Gross Weight 10500 lbs
    Dry Weight 8114 lbs
    Cargo Weight 2386 lbs
    Fresh Water Capacity 44 gals
    Grey Water Capacity 80 gals
    Black Water Capacity 30 gals
    Furnace BTU 35000 btu
    Available Beds King
    Refrigerator Type Residential
    Cooktop Burners 3
    Shower Size 48" x 30"
    LP Tank Capacity 30 lbs.
    Water Heater Type Gas/Electric DSI
    AC BTU 15000 btu
    TV Info 39" Flat Screen TV
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

  • Catalina Destination Series 39FKTS

    Catalina Destination Series 39FKTS Floorplan Image

    Take a Virtual Tour

    Coachmen Catalina Destination Series destination trailer 39FKTS highlights: ... more about Catalina Destination Series 39FKTS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 8
    Slides 3
    Length 40 ft 9 in
    Ext Width 8 ft
    Ext Height 11 ft 8 in
    Int Height 7 ft
    Interior Color Sandcastle, Biscotti, Mocha
    Hitch Weight 1110 lbs
    Gross Weight 11000 lbs
    Dry Weight 9540 lbs
    Cargo Weight 1460 lbs
    Fresh Water Capacity 46 gals
    Grey Water Capacity 80 gals
    Black Water Capacity 40 gals
    Furnace BTU 35000 btu
    Number Of Bunks 1
    Available Beds Queen
    Refrigerator Type Residential
    Cooktop Burners 3
    Shower Size 48" x 30"
    LP Tank Capacity 30 lbs.
    Water Heater Type DSI Gas/Electric
    AC BTU 15000 btu
    TV Info 39" Flat Screen TV
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

  • Catalina Destination Series 39MKTS

    Catalina Destination Series 39MKTS Floorplan Image

    Take a Virtual Tour

    Coachmen Catalina Destination Series destination trailer 39MKTS highlights: Dual ... more about Catalina Destination Series 39MKTS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 3
    Length 40 ft 9 in
    Ext Width 8 ft
    Ext Height 11 ft 8 in
    Int Height 7 ft
    Interior Color Sandcastle, Biscotti, Mocha
    Hitch Weight 1330 lbs
    Gross Weight 11000 lbs
    Dry Weight 9410 lbs
    Cargo Weight 1590 lbs
    Fresh Water Capacity 46 gals
    Grey Water Capacity 80 gals
    Black Water Capacity 30 gals
    Furnace BTU 35000 btu
    Available Beds King
    Refrigerator Type Residential
    Cooktop Burners 3
    Shower Size 48" x 30"
    LP Tank Capacity 30 lbs.
    Water Heater Type DSI Gas/Electric
    AC BTU 15000 btu
    TV Info 39" Flat Screen TV
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

  • Catalina Destination Series 39RLTS

    Catalina Destination Series 39RLTS Floorplan Image

    Coachmen Catalina Destination Series destination trailer 39RLTS highlights: Dual ... more about Catalina Destination Series 39RLTS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 3
    Length 40 ft 9 in
    Ext Width 8 ft
    Ext Height 11 ft 8 in
    Int Height 7 ft
    Interior Color Sandcastle, Biscotti, Mocha
    Hitch Weight 1494 lbs
    Gross Weight 11000 lbs
    Dry Weight 9762 lbs
    Cargo Weight 1238 lbs
    Fresh Water Capacity 44 gals
    Grey Water Capacity 80 gals
    Black Water Capacity 30 gals
    Furnace BTU 35000 btu
    Available Beds King
    Refrigerator Type Residential
    Cooktop Burners 3
    Shower Size 48" x 30"
    LP Tank Capacity 30 lbs.
    Water Heater Type Gas/Electric DSI
    AC BTU 15000 btu
    TV Info 39" Flat Screen TV
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

  • Catalina Destination Series 40BHTS

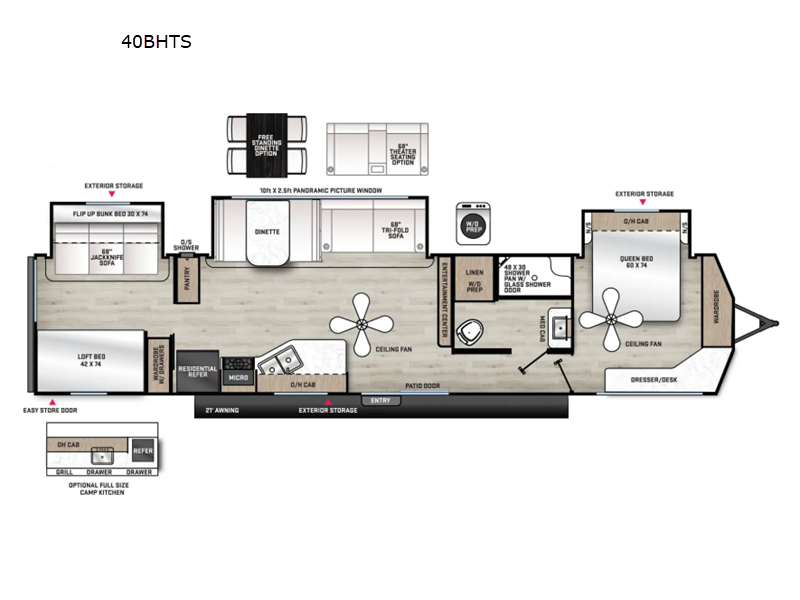

    Catalina Destination Series 40BHTS Floorplan Image

    Take a Virtual Tour

    Coachmen Catalina Destination Series destination trailer 40BHTS highlights: ... more about Catalina Destination Series 40BHTS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 9
    Slides 3
    Length 40 ft 9 in
    Ext Width 8 ft
    Ext Height 11 ft 8 in
    Int Height 7 ft
    Interior Color Sandcastle, Biscotti, Mocha
    Hitch Weight 1130 lbs
    Gross Weight 11000 lbs
    Dry Weight 9670 lbs
    Cargo Weight 1330 lbs
    Fresh Water Capacity 44 gals
    Grey Water Capacity 80 gals
    Black Water Capacity 40 gals
    Furnace BTU 35000 btu
    Number Of Bunks 2
    Available Beds Queen
    Refrigerator Type Residential
    Cooktop Burners 3
    Shower Size 48" x 30"
    LP Tank Capacity 30 lbs.
    Water Heater Type DSI Gas/Electric
    AC BTU 15000 btu
    TV Info 39" Flat Screen TV
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

Catalina Destination Series Features:

Standard Features (2019)

Construction and Equipment Features
  • Cambered Structural Steel I-Beam Frame
  • Full-Length Frame Out Riggers
  • 5/8" Tongue and Groove Plywood Floor Decking
  • 2" x 3" Floor Joists on Approximately 12" Centers
  • 84" Ceiling Height
  • 3/8" Fully Decked Walk-On Roof
  • Seamless Dicor Roof with 12-Year Warranty
  • Easy-Trac Rack and Pinion Slide-Out(s)
  • R-7 Fiberglass Insulation Throughout
  • Gas/Electric DSI Water Heater
  • Water Heater By-Pass Winterization Kit
  • 15,000 BTU Ducted A/C
  • 35,000 BTU Auto-Ignition Furnace with Wall Thermostat
  • 12V Demand Water Pump
  • Platinum .024" Aluminum Skin with .030 Skirt Metal
  • Dexter EZ Lube Axles with Leaf Spring Suspension
  • Self-Adjusting Brakes
  • Roto-Cast Holding Tanks
  • Painted Bumper with Drain Hose Carrier and End Caps
  • 50 AMP Electrical Service
  • Medicine Cabinet with Mirror

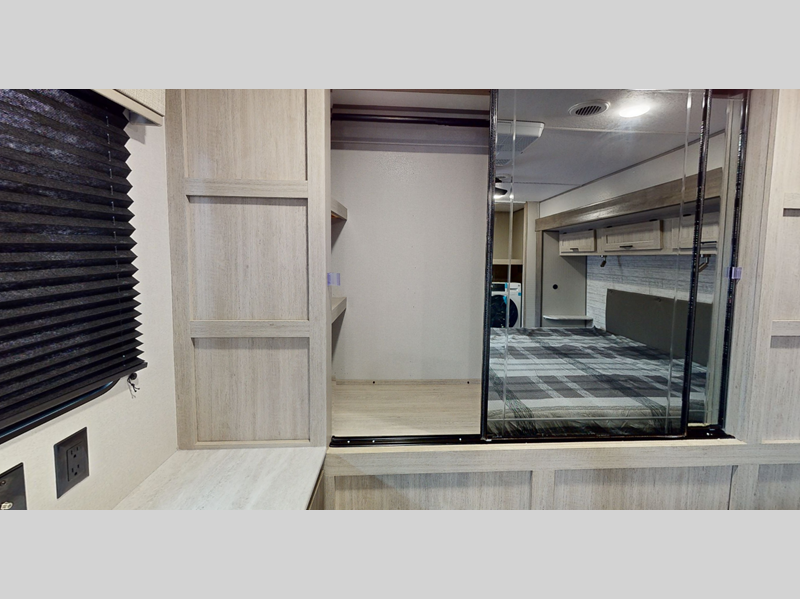

  • Solid Master Bedroom Door(s)
  • Solid Bunk Room Door
  • Night Stands Built into Bed Slide-Out Walls
  • Master Bedroom Overhead Cabinets
  • Quilted Designer Bedspread

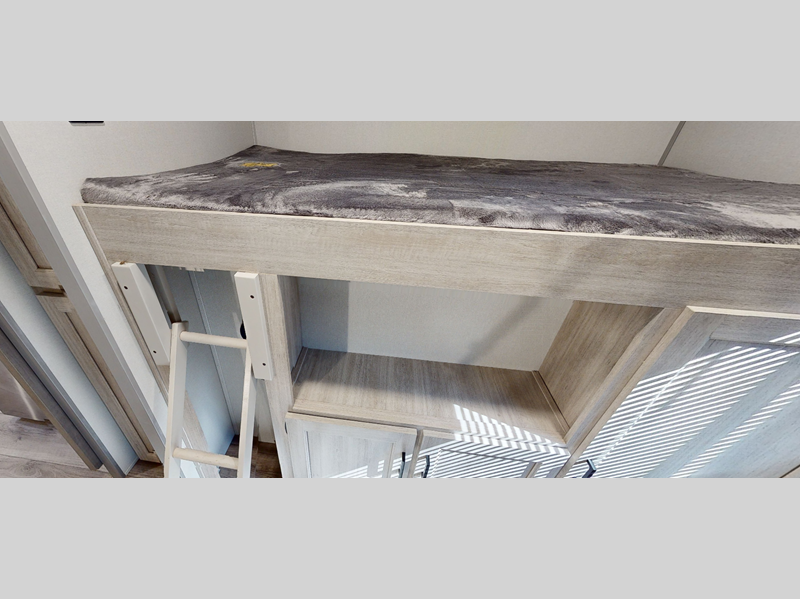

  • Teddy Bear Bunk Mats

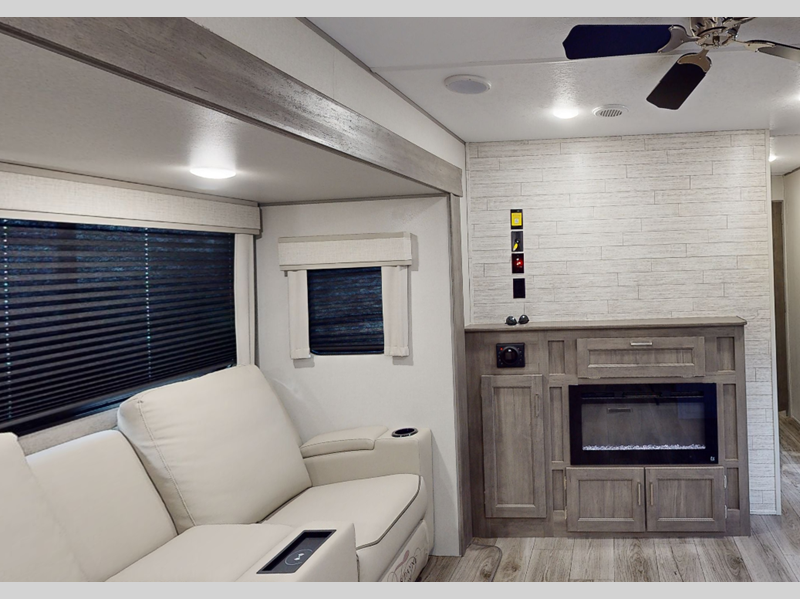

  • Furrion Fireplace in the Living Room
  • Bar Stools
  • Serta Mattress
  • Ceiling Fans in Living Room and Master with Wall Switch
  • Prepped for Washer/Dryer (39MKTS, 39RLTS Only)
Exterior Features
  • Black Tank Flush
  • Residential Sliding Glass Door

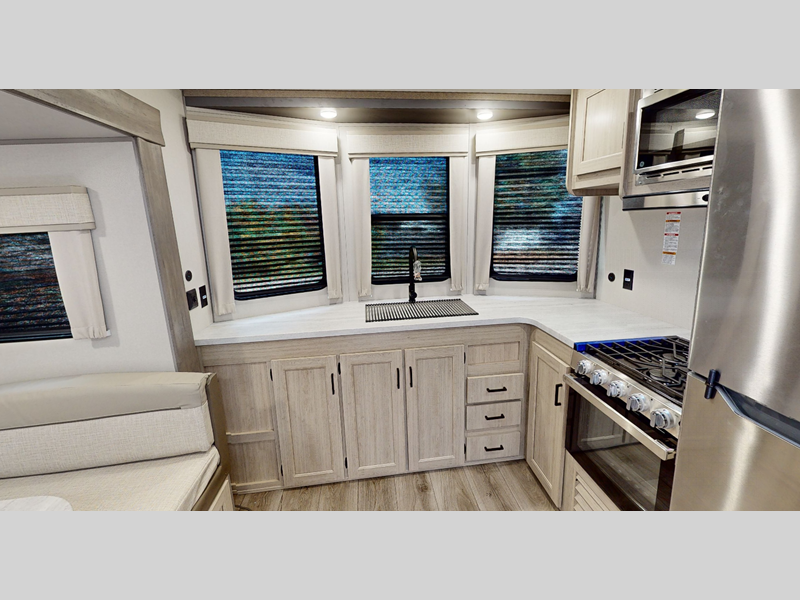

  • Large Front Bay Windows
  • XL Swing Arm Grab Handle
  • Manual Tongue Jack
  • Two 30LB LP Bottles with ABS Cover
  • Flush-Mount Baggage Doors with Radius Corners
  • Four Stabilizer Jacks
  • G20 Tinted Windows
  • Two Marine Grade Exterior Speakers with LED Lighting
  • Radius Cornered Fiberglass Entry Door
  • Entry Door Safety Window
  • Aluminum Fender Skirts
  • E-Coat Sport Style Wheels
  • Exterior 110V G.F.C.I Protected Receptacle
  • Exterior RG-6 Coax Cabling and Prepped for Satellite
  • Rain Gutters with Drip Spouts
  • Radius Entry Steps
  • Outside Shower with Handle Hold
Interior
  • Drop Edge Thermofoil Seamless Counter Tops
  • Screwed Cabinet Construction with Pocket Bored Lumber Core Stiles
  • Congoleum Woodplank Linoleum Flooring
  • Salvaged Light Oak Cabinets
  • All-In-One Monitor Panel
  • Stereo with DVD Player, CD, MP3, USB, and AM/FM Radio
  • 39" Flatscreen TV with Swing Arm TV Bracket
  • In-Wall Mounted Interior Speakers
  • Deep Undermount Dual Basin 50/50 Sink
  • Kitchen Sink Covers
  • Residential Pull-Down Sprayer Faucet
  • Ball-Bearing Kitchen Drawer Guides
  • Microwave

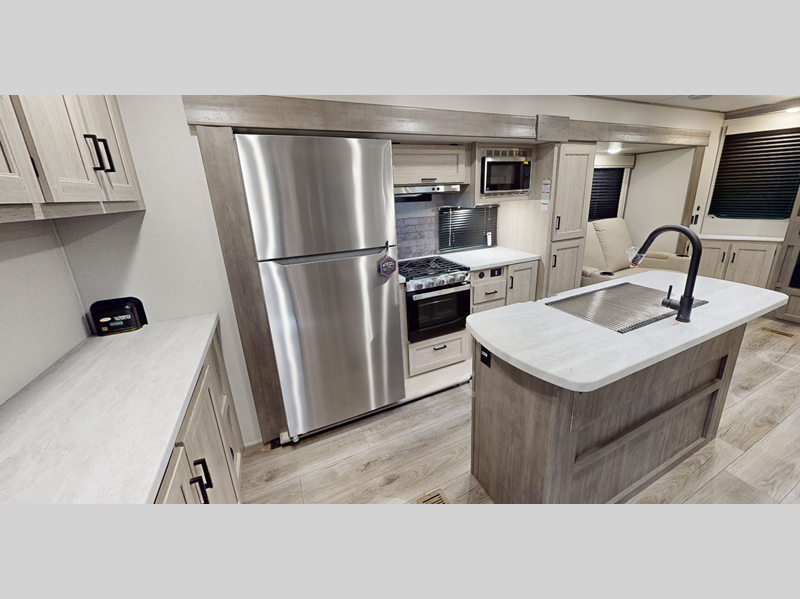

  • Home-Style Refrigerator

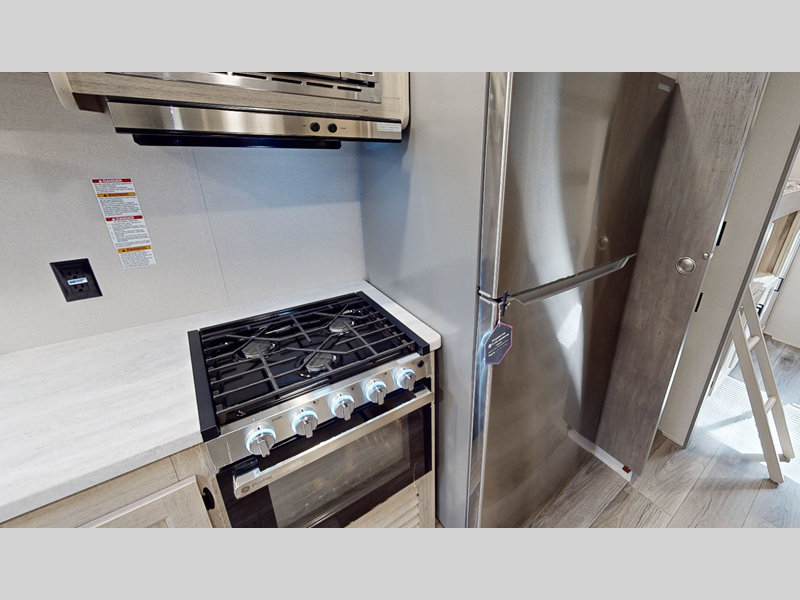

  • 3-Burner Range with Flush-Mount Glass Top
  • Oven with Blue LED Accent Lighting
  • Range Hood
  • Silverware Kitchen Drawer
  • Mosaic Tile Backsplash
  • Residential In-Floor Ducted Heat
  • LED Interior Lighting
  • Residential Tri-Fold Sofa
  • Sofa Decorative Throw Pillows
  • 70" Slide Out Room Height
  • Hard Valance Window Treatment in the Living Room
  • Pleated Night Window Shades

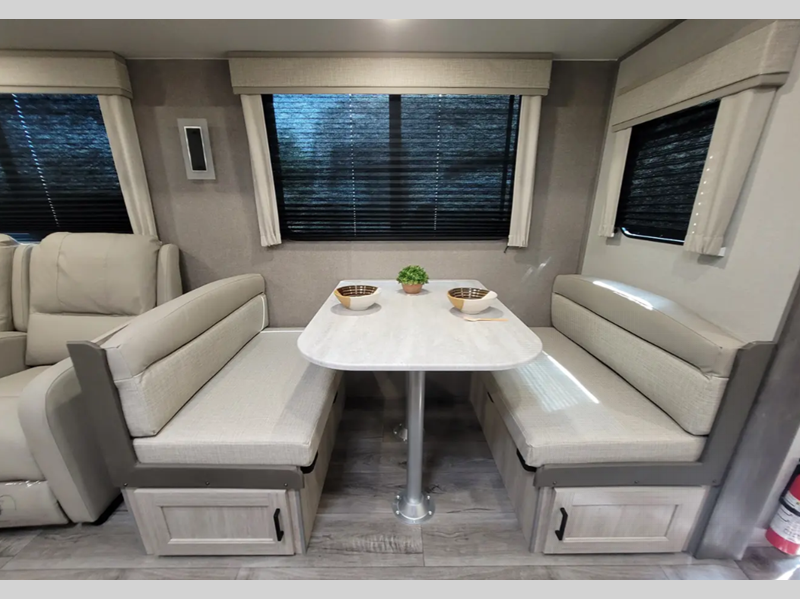

  • Pedestal Thermofoil Dinette Table
  • Dinette Storage under Benches
  • Easy Access Booth Dinette Storage Doors
  • Marine Toilet with Foot Flush
  • Skylight above Tub/Shower

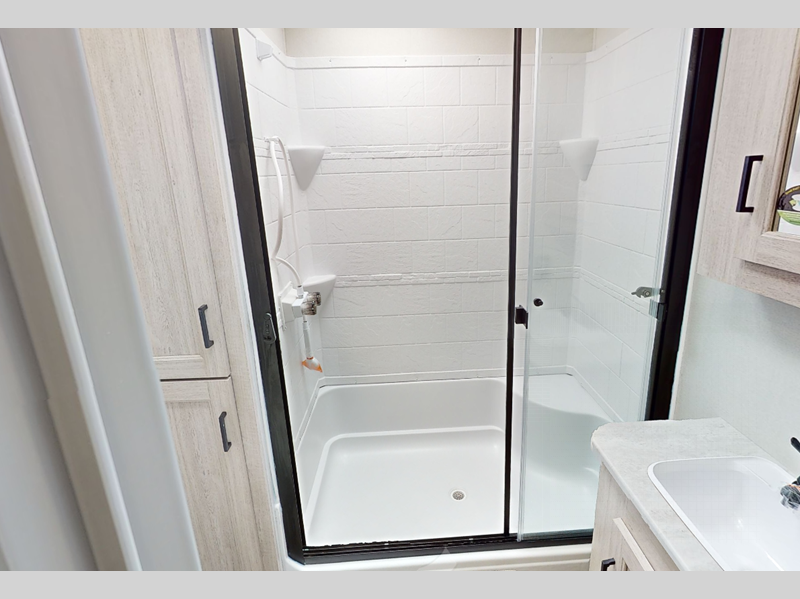

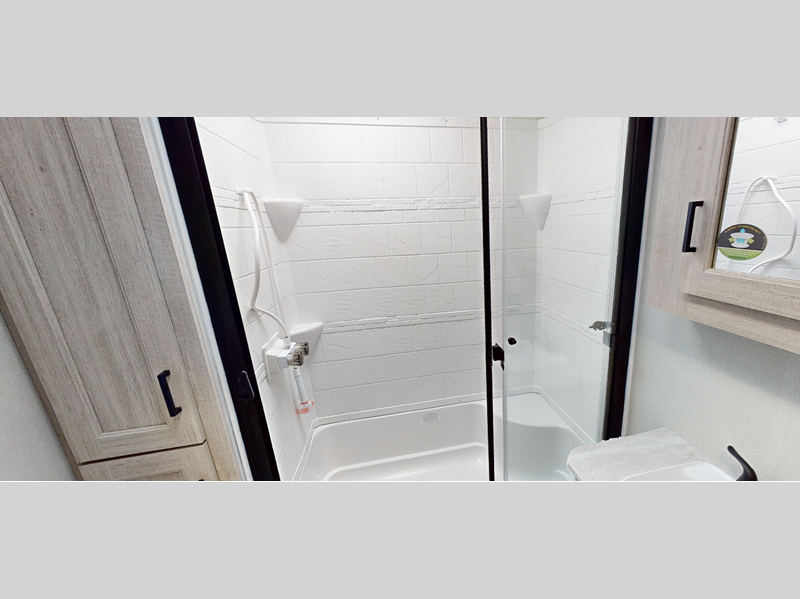

  • Glass Step-In Shower with Abs Surround

Safety Features

  • Smoke Alarm
  • LP/CO Gas Detector
  • Fire Extinguisher
  • Fire Escape Windows
  • Dead-Bolt Lock on Entry Door
Options
  • Enclosed Underbelly
  • Second 13,500 BTU A/C
  • Freestanding Table with Four Chairs
  • Full-Size Exterior Camp Kitchen (40BHTS Only)
  • Power Electric Awning with LED Lights
  • Spare Tire with Carrier and Cover
  • Non-Self Contained Toilet (Fresh Water Tank and Pump, No Black and Grey Tanks with a Direct Pump)
  • Detachable Hitch
  • CSA Standards



See us for a complete list of features and available options!
All standard features and specifications are subject to change.
